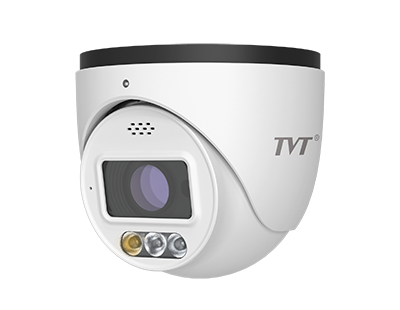

TD-9565E4-PA 6MP Dual-illumination Turret Network Camera

D-9565E4-PA is a 6MP turret network camera featuring smart dual illumination with up to 40 meters IR and white light range. It is equipped with intelligent analytics, real-time event detection, user-defined warning voice import, and dual system backup. Designed for demanding surveillance environments, it supports motorized or fixed lenses, three streams, multiple smart events, and PoE/DC12V power input. Enhanced with IP66 weatherproofing and advanced image stabilization, it ensures 24/7 security with high-definition clarity.

Product Features

• Max. resolution: 3296 × 1856 (6MP)

• H.265S / H.265+ / H.265 / H.264S / H.264+ / H.264 video compression

• Smart dual illumination: 30~40m white light & IR range

• Smart supplement light with adjustable settings

• Electronic image stabilization (EIS)

• Built-in microSD slot, up to 512GB

• IP66-rated waterproof protection

• DC12V / PoE power supply (IEEE802.3af)

• Blue & red warning light (flashing alternately)

• User-defined warning voice import

• Remote viewing via smartphones, tablets, NVMS, and web

• Dual system backup

• Multiple smart events and alarms (motion, intrusion, loitering, etc.)

• Three video streams

• Intelligent analytics: face detection, illegal parking, people counting, heat map

• Support for motorized and fixed lenses

Technical Specifications

Camera

• Image Sensor: 1/2.5″ CMOS

• Max. Resolution: 3296 × 1856

• Electronic Shutter: 1/3s ~ 1/100000s

• Min. Illumination: 0.005 lux @F1.6 (AGC ON), 0 lux with illumination

• Wide Dynamic Range: 120dB

• Digital NR: 3D DNR

• EIS: Yes

• Defog: Not specified

• S/N Ratio: ≥50dB

Lens Options

• Motorized Lens: 2.7~13.5mm @F1.6

  • H.FoV: 104°–36°, V.FoV: 55°–20°, D.FoV: 125°–41°

• Fixed Lens (Optional):

  • 2.8mm @F1.6 (H: 104.5°, V: 54.5°, D: 130.5°)

  • 3.6mm @F1.6 (H: 79°, V: 39°, D: 98°)

• Lens Mount: M12 or Φ14

• Focus: Motorized or Fixed

• Angle Adjustment: Pan: 0°~360°, Tilt: 0°~75°, Rotation: 0°~360°

Video

• Compression: H.265S, H.265+, H.265, H.264S, H.264+, H.264, MJPEG

• Profiles: Baseline / Main / High

• Resolution Options:

  • 6MP, 3K, 4MP, 2K, 1080P, 720P, D1, VGA, 640×360, CIF, 480×240

• Main Stream:

  • 6MP/3K/4MP/2K/1080P (60Hz: 130fps, 50Hz: 125fps)

• Sub Stream:

  • 1080P/720P/D1/VGA/640×360/CIF/480×240

• Third Stream:

  • 720P/D1/CIF/480×240

• Bitrate: 32 Kbps ~ 10 Mbps

• Bitrate Type: VBR / CBR

• Image Settings: ROI, brightness, contrast, hue, sharpness, flip, mirror, etc.

• ROI: 8 configurable zones

Interfaces

• Network: RJ45 (10/100 Base-T)

• Audio:

  • 1CH input, 1CH output, 1CH built-in mic, 1CH built-in speaker

• Video Output: No

• Storage: microSD slot up to 512GB + network storage

• Alarm I/O: 1CH input, 1CH output

• Reset: Yes

Smart Functions

• Alarms:

  • Motion detection, SMD, sensor alarm, SD card error/full, IP conflict, disconnection, audio/light alarms

• Smart Events:

  • Line crossing, region intrusion, loitering, entrance/exit (human/vehicle classification), illegal parking, abandoned/missing object

  • People gathering, heat map

  • Scene change, video blur, color abnormality

• Face Detection: Yes

• Video Metadata: Extracts 13 human features, 4 vehicle, 1 non-motor vehicle

• Statistics: Target counting by line/area

Web Access & Protocols

• Remote Monitoring: TVT NVR, NVMS, mobile app, web client

• Web Browsers: Chrome 92+, Edge 92+, Firefox 91+, Safari 13.1+

• Concurrent Users: Up to 10

• Protocols: UDP, IPv4/IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, HTTPS, 802.1x, UPnP, HTTP POST, P2P, QoS

• Interface Protocol: ONVIF Profile S/G/M/T

• API & SDK: Supported

Power & Environment

• Power Supply: DC12V / PoE (IEEE802.3af)

• Power Consumption: < 12W

• Operating Temp: -30°C ~ 60°C (-22°F ~ 140°F), <95% RH

• Storage Temp: -30°C ~ 65°C (-22°F ~ 149°F), <95% RH

• Ingress Protection: IP66

• Dimensions: Ø111.5 × 99.6 mm

• Weight:

  • Motorized: ~0.646 kg

  • Fixed: ~0.610 kg

• Installation: Ceiling or wall mount

Certifications

• CE, FCC

• Environmental: RoHS, WEEE (2012/19/EU), 94/62/EC, REACH (EC1907/2006)
