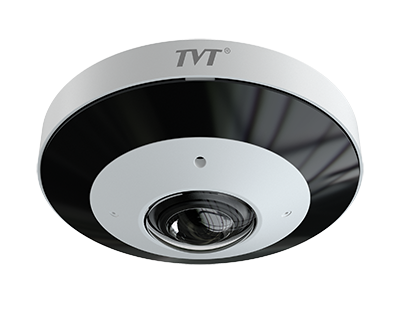

TD-9568E3B-A 6MP IR Water-proof Fisheye Network Camera

A high-performance panoramic fisheye IP camera with intelligent analytics, suitable for wall, ceiling, or desktop mounting. Offers up to 2160×2160 resolution, smart IR, built-in micro SD storage, and supports H.265+/H.265/H.264+/H.264 encoding.

Product Features

• 1:1 (2160×2160) @30fps

• H.265+ / H.265 / H.264+ / H.264 / MJPEG coding

• ICR auto switch for true day & night

• 10~20m IR view distance

• 3D DNR, WDR, BLC, HLC, Smart IR, Defog

• ROI (Region of Interest)

• Built-in micro SD card slot (up to 256GB)

• IP67 ingress protection

• Intelligent analytics (people counting, intrusion, heat map, etc.)

• P2P functionality

• iOS/Android mobile surveillance support

  Technical Specifications

  Camera:

  • Image Sensor: 1/2.5″ Progressive Scan CMOS

  • Max. Resolution: 3200×1800

  • Min. Illumination: 0.01 lux @F2.0, 0 lux with IR

  • Lens: 1.65mm @F2.0, FOV: 180° (wall), 360° (ceiling/desktop)

  • WDR: 120dB, S/N Ratio: ≥50dB

  Video:

  • Compression: H.265+, H.265, H.264+, H.264, MJPEG

  • Multiple View Modes: Fisheye, Panoramic, Fisheye + PTZ combinations

  • Bit Rate: 64Kbps ~ 10Mbps (VBR/CBR)

  • Audio Compression: G.711 A/U

  Network & Interfaces:

  • Ethernet: RJ45 10M/100M

  • CVBS Output, Audio I/O, RS-485

  • SD Card Slot: up to 256GB

  • Alarm I/O, Reset button

  Smart Features:

  • Intelligent Analytics: Region intrusion, line crossing, people counting, etc.

  • Smart Alarms: Motion, SD error/full, audio exception, etc.

  • Security: Video encryption, IP filtering, HTTPS, 802.1x

  General:

  • Power: DC12V / PoE (IEEE802.3af)

  • IR Distance: 10–20m

  • Operating Temp: -30°C to 60°C

  • Storage Temp: -30°C to 65°C

  • Dimensions: 130.6mm × 46.3mm

  • Weight: ~516.2g

  • Installation: Wall, ceiling, desktop

  • Certifications: CE, FCC, UKCA

  • Environment: RoHS, WEEE, REACH compliant
