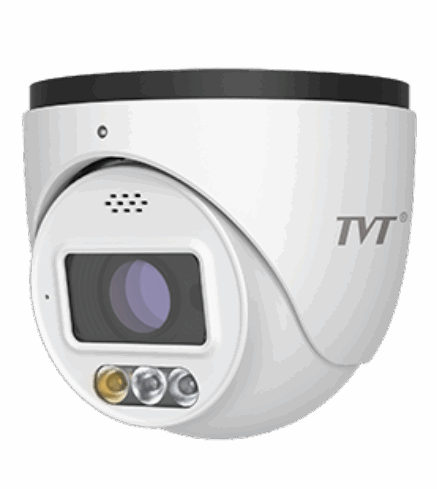

TD-9564S4-C 6MP Dual Illumination Waterproof Turret Network Camera

The TD-9564S4-C is a 6MP high-resolution turret network camera with dual illumination (white and infrared light) and IP67 weatherproof protection. It is engineered for round-the-clock outdoor or indoor surveillance and features smart detection capabilities including line crossing, region intrusion, object removal/abandonment, and video anomaly alerts. It also supports three video streams, multiple compression formats, and can be integrated with mobile apps and NVRs for flexible remote monitoring.

Technical Specifications

Camera Specs

• Image Sensor: 1/2.5″ CMOS

• Image Size: 3200 × 1800

• Electronic Shutter: 1/4s ~ 1/100000s

• Min. Illumination: 0.008 lux @F1.6, AGC ON; 0 lux (illumination on)

• Lens Options:

  • 2.8mm@F1.6: HFoV 104°, VFoV not listed, DFoV 128°

  • 3.6mm@F1.6: HFoV 78°, VFoV 38°, DFoV 94°

• Lens Mount: M12

• Iris Type: Fixed

• Day & Night: ICR

• Focus: Fixed

• Wide Dynamic Range: 120dB

• BLC / HLC / DNR: Yes

• S/N Ratio: ≥50dB

• Angle Adjustment: Pan: 0–360°, Tilt: 0–75°, Rotation: 0–360°

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub & Third Stream: H.265+/H.265/H.264+/H.264/MJPEG

• Profile: Main Profile @Level 4.1 High Tier

• Resolution Options:

  • 6MP (3200×1800), 4MP (2688×1520), 1080P, 720P, D1, VGA, 480×240, CIF

• Frame Rate:

  • Main: 6MP: 120fps; 4MP/1080P: 130fps (60Hz), 1~25fps (50Hz)

  • Sub Stream: D1/480×240/CIF @ 130fps (60Hz), 125fps (50Hz)

  • Third Stream: 720P/D1/VGA/CIF @ 130fps (60Hz), 125fps (50Hz)

• Bitrate: 64 Kbps ~ 8 Mbps (VBR / CBR)

• Audio Compression: G711A/U

• Image Settings: Brightness, contrast, saturation, sharpness, mirror, flip, NR, ROI

Interface & Storage

• Network Interface: RJ45 (10/100 Base-T)

• Audio: 1CH audio input; 1CH built-in mic

• Video Output: Not supported

• Storage: Built-in microSD card slot (up to 256GB), network storage

• Reset: Yes

Smart Functions

• Motion Detection: Yes

• Smart Alarms: SMD, SD card error/full, IP conflict, disconnection, video exception

• Smart Events:

  • Line crossing / region intrusion (human/vehicle classification)

  • Abandoned/missing object detection

• General: Watermark, video mask, heartbeat, IP filtering, ANR, cloud upgrade

• Security:

  • Video, firmware, HTTPS, config encryption

  • Login lock, IP filter, 802.1x auth, HTTP/RTSP auth

Remote Monitoring

• Web Browser: Chrome 89+, Edge 89+, Firefox 87+, Safari 14+

• Platforms: TVT NVR / NVMS2.X / Mobile App

• Online Users: Up to 6 simultaneous

Supplement Light Range

• IR: 20–30 meters

• White Light: 20–30 meters

Power & Environmental

• Power Supply: DC12V / PoE

• Power Consumption: < 6.5W

• Operating Temp: -30°C ~ 60°C (-22°F ~ 140°F)

• Storage Temp: -30°C ~ 65°C (-22°F ~ 149°F)

• Humidity: <95% (non-condensing)

• Dimensions: Ø94.6 × 82.8 mm

• Weight: Approx. 0.45 kg

• Mounting: Ceiling or wall

Certifications & Compliance

• CE, FCC

• Compliant with EU RoHS, WEEE (2012/19/EU), 94/62/EC, REACH (EC1907/2006)
