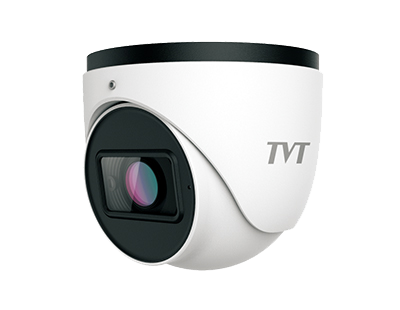

TD-9545E3B-A 4MP Network IR Water-Proof Turret Camera

4MP Network IR Water-Proof Turret Camera
A high-resolution network turret camera with smart analytics, motorized zoom lens, and IP67-rated weather protection designed for both indoor and outdoor surveillance.

Product Features:

• 4MP (2688 × 1520) resolution

• Motorized zoom lens (2.8~12mm @ F1.3)

• ICR auto switch for true day/night vision

• 30 ~ 50m IR night vision

• H.265+/H.265/H.264+/H.264/MJPEG video encoding

• True WDR (120dB), BLC, HLC, Defog, Smart IR

• 3D DNR, image distortion correction

• Support for ROI (Region of Interest)

• Intelligent video analytics and face detection

• Built-in microSD slot (up to 256GB)

• IP67 ingress protection

• Supports P2P, mobile viewing (iOS/Android)

• PoE and DC12V power supply

• Remote monitoring and multi-user access

Technical Specifications:

Camera:

• Image Sensor: 1/3″ CMOS

• Min. Illumination: 0.003 lux @ F1.3, 0 lux with IR

• Resolution: Max 2688 × 1520

• Lens: 2.8–12mm motorized, F1.3

• Field of View: Horizontal 100°–28.9°, Vertical 54.5°–16.7°, Diagonal 118°–35°

• Angle Adjustment: Pan 0°–360°, Tilt 0°–80°, Rotation 0°–360°

• IR Distance: 30–50m

• Wide Dynamic Range: 120dB

• S/N Ratio: ≥50dB

Video:

• Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Streams: Three simultaneous streams

• Frame Rates: Up to 30fps @ 4MP

• Bitrate: 64Kbps ~ 8Mbps

• Bitrate Type: VBR/CBR

• Audio: G711A/U, 1CH input/output, built-in MIC

Network & Interface:

• Network Protocols: IPv4/IPv6, DHCP, RTSP, RTP, RTMP, HTTPS, P2P, ONVIF, etc.

• Interface: RJ45 Ethernet, Alarm in/out, Audio in/out

• Storage: microSD card (up to 256GB), network storage

• Reset Button: Yes

Analytics & Smart Functions:

• Line crossing, intrusion, loitering, parking detection

• Face detection & capture

• Video metadata (13 human, 4 vehicle, 1 non-motor vehicle features)

• Target counting, heat map, scene change, video blur, abnormal color

Environmental & Power:

• Power Supply: DC12V / PoE (IEEE802.3af)

• Power Consumption: < 9W

• Operating Temp: -30°C ~ 60°C

• Storage Temp: -30°C ~ 65°C

• Ingress Protection: IP67

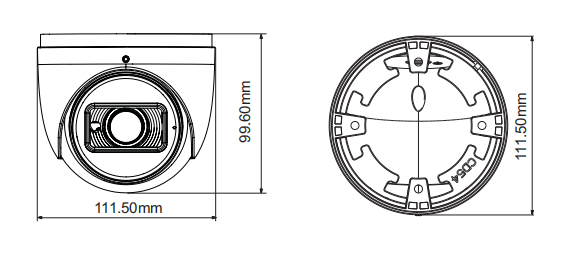

• Dimensions: 111.5 × 99.6 mm

• Weight: Approx. 0.66kg

• Installation: Wall / Ceiling mount

• Certifications: CE, FCC

• Environmental Compliance: RoHS, WEEE, REACH
